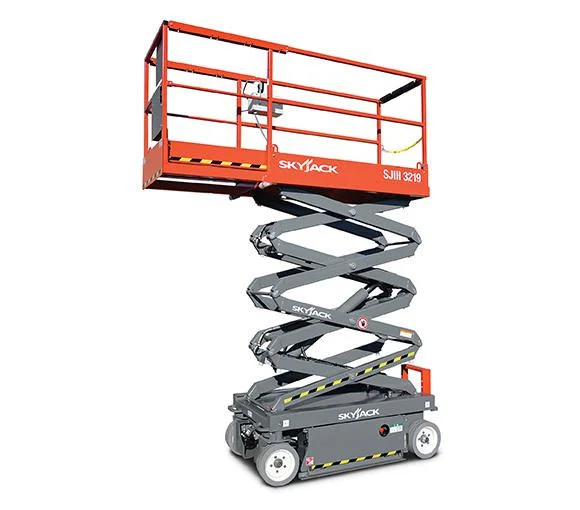

Xe nâng người SJIII 3219

Chiều cao làm việc	8m
Tải trọng nâng	249kg

Xe nâng người Cắt kéo hãng Skyjack SJIII 3219 được lựa chọn cho nhiều nhà xưởng, nhà máy, công trình như lắp hệ thống điện, sửa chữa, vệ sinh công nghiệp, PCCC…

Chiều cao làm việc	10m
Hãng sản xuất	Skyjack
Loại xe	Dạng cắt kéo – Scissor lift
Tải trọng nâng	300Kg

Thông số kỹ thuật

	SJIII 3219
Work Height	25’ (7.62 m)
Raised Platform Height	19’ (5.79 m)
Lowered Platform Height	39” (0.99 m)
Overall Width	32” (0.81 m)
Overall Length	70” (1.78 m)
Stowed Height (Rails Up)	78.5” (1.99 m)
Stowed Height (Rails Down)	OPT 64.5” (1.64 m)
Platform Width (Inside Dimension)	26” (0.66 m)
Platform Length (Inside Dimension)	64” (1.63 m)
Extension Deck (Roll Out)	3’ (0.91 m)
Ground Clearance (Stowed)	2.375” (6.03 cm)
Ground Clearance (raised)	0.7” (1.78 cm)
Wheelbase	55” (1.40 m)
Weight	2,580 lbs (1,170 kg)
Gradeability	30%
Turning Radius (Inside)	0
Turning Radius (Outside)	66” (1.68 m)
Lift Time (With Rated Load)	25 sec
Lower Time (With Rated Load)	29 sec
Drive Speed (Stowed)	2 mph (3.2 km/h)
Drive Speed (Raised)	0.7 mph (1.1 km/h)
Maximum Drive Height	Full Height
Capacity	550 lbs (249 kg)
Distributed Capacity (Main Platform)	300 lbs (136 kg)
Distributed Capacity (Extension Deck)	250 lbs (113 kg)
Local Floor Load (With Rated Load)	110 psi (759 kPa)
Overall Floor Load (With Rated Load)	201 psf (10 kPa)
Maximum # of Persons	2
Wind Rating	28 mph (12.5 m/s)
Tire Type	Solid, N/M
Tire Size	12 x 4 x 8
