Xe nâng người SJIII 4632

Chiều cao làm việc	12m
Tải trọng nâng	318kg

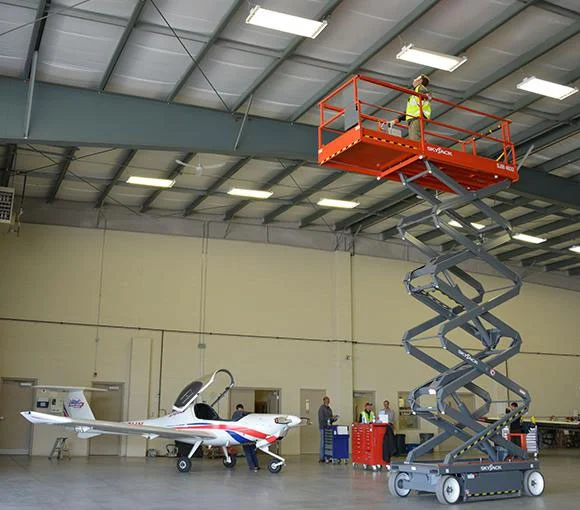

Xe nâng người Cắt kéo hãng Skyjack SJIII 4632 với khả năng nâng hạ bằng động cơ điện mạnh mẽ để tối đa hóa năng suất công việc.

Thông số kỹ thuật

	SJIII 4632
Work Height	38’ (11.58 m)
Raised Platform Height	32’ (9.75 m)
Lowered Platform Height	48.5” (1.23 m)
Overall Width	46” (1.17 m)
Overall Length	91” (2.31 m)
Stowed Height (Rails Up)	88” (2.24 m)
Stowed Height (Rails Down)	74” (1.88 m)
Platform Width (Inside Dimension)	42” (1.07 m)
Platform Length (Inside Dimension)	84” (2.13 m)
Extension Deck (Roll Out)	4’ (1.22 m)
Ground Clearance (Stowed)	3.5” (8.89 cm)
Ground Clearance (raised)	0.75” (1.91 cm)
Wheelbase	69” (1.75 m)
Weight	5,075 lbs (2,302 kg)
Gradeability	25%
Turning Radius (Inside)	47.5” (1.21 m)
Turning Radius (Outside)	93.5” (2.37 m)
Lift Time (With Rated Load)	59 sec
Lower Time (With Rated Load)	49 sec
Drive Speed (Stowed)	2 mph (3.2 km/h)
Drive Speed (Raised)	0.6 mph (1 km/h)
Maximum Drive Height	Full Height
Capacity (Overall)	700 lbs (318 kg)
Distributed Capacity (Main Platform)	450 lbs (204 kg)
Distributed Capacity (Extension Deck)	250 lbs (113 kg)
Local Floor Load (With Rated Load)	220 psi (1517 kPa)
Overall Floor Load (With Rated Load)	204 psf (10 kPa)
Maximum # of Persons	2
Wind Rating	28 mph (12.5 m/s)
Tire Type	Solid, N/M
Tire Size	16 x 5 x 12
